Input Sources are reusable components based on the CAPSYS CAPTURE QSX architecture that are used to provide one or more automated input streams of documents and data to the CAPSYS CAPTURE system. Input Sources are processed by the CAPSYS CAPTURE Server as part of a Server Group.
Input Sources are added to Server Groups from the Servers/Input Panel in the Process Manager Application. To add an Input Source, first select the Server Group, then click on the Add Input Source button from the Input Sources Toolbar.

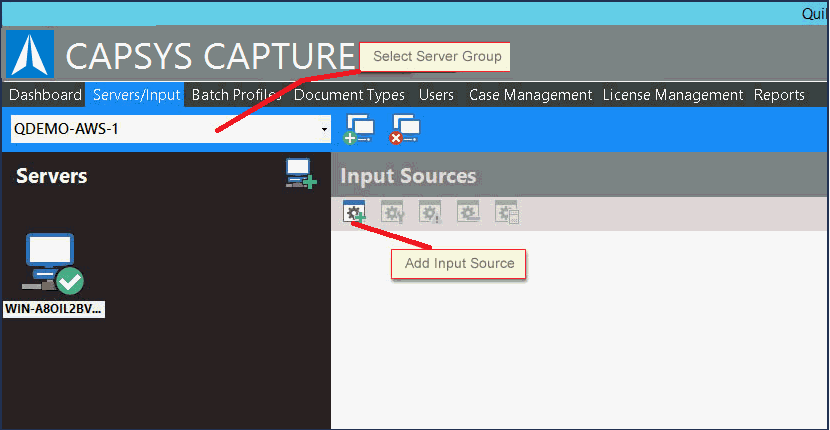

Figure 1 - Servers/Input Panel
Upon clicking the Add Input Source button, the Add Input Source Dialog will be displayed. Select the desired Input Source from the list and click OK to add the Input Source to the selected Server Group.
Figure 2 - Add Input Source Dialog
Each Input Source QSX has it's own settings that must be configured. Select an Input Source from the list and click on the Configure Input Source button from the Input Sources Toolbar.
Figure 3 - Configure Input Source
The QSX Development Kit (requires a development license) provides you with source code to develop custom input source modules. Once registered with CAPSYS Process Manager, custom input source modules can be added to server groups in the same manner as the standard input sources.
